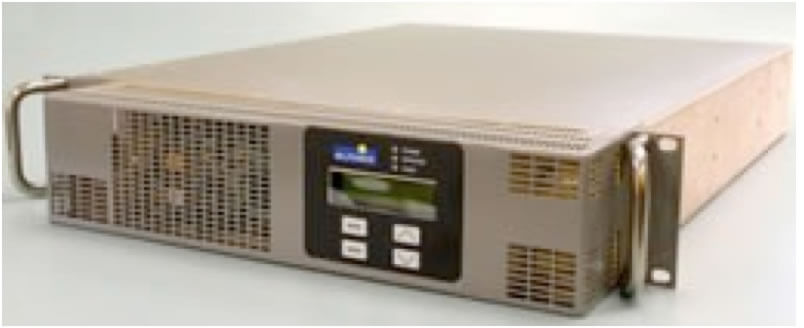

ARC-210 100-Watt VHF/UHF Power Amplifier AM-7581A

P/N 34000-1

Milpower is delivering a 100 Watt 30-400 MHz Power Amplifier in a 3.5” chassis that interfaces with the Rockwell/Collins ARC-210 series of Receiver/Transmitters OA-9277 antenna coupler interface.

Power Output:

100 watts (+50 dBm)

Frequency Range :

30-400 MHz

Input Power:

+10 dBm to +45 dBm

RF Gain Control:

1 dB steps Input range +10 to +45 dBm.
Output range +40 dBm (10 watts) to +50 dBm (100 watts)

Control Interface :

ARC-210 Control Interface
Ethernet 10/100 BaseT, HTTP, FTP, SOCKET, SNMP, Discrete

Prime Power:

103-126 VAC, 45-420 Hz, single Phase per MIL-STD-1300

Size and Weight:

19" W x 3.5" H x 20.5" D, 48 lbs.

Acoustic Noise:

< 62 dB @3 feet

Shock:

MIL-STD-901D operating: +/- 15 g, 11mSec; non-operating: +/- 30 g

Vibration:

MIL-STD-167-1 Type 1

Temperature:

Operating: 0° C to + 50° C; non-operating: -40° C to +70° C

Altitude:

Operating: 10,000 feet; non-operating: 15,000 feet

Humidity:

95%, non-condensing

EMI/EMC:

MIL-STD-461C

MTBF:

> 12,000 hours
