ARC-210 200-Watt VHF/UHF Power Amplifier (MUOS)

P/N 33000-1

ARC-210 100-Watt MUOS

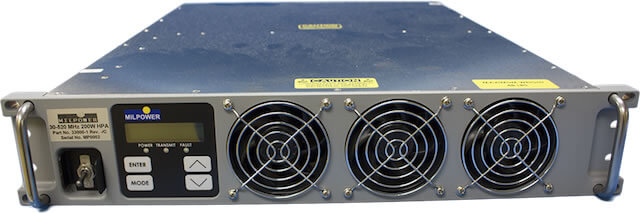

Milpower is delivering a 200 Watt 30-520 Mhz Power Amplifier in a 3.5" chassis that interfaces with the Rockwell/Collins ARC-210 series of Receiver/Transmitters. This rack-mounted amplifier can also be provided with complete, tested compatibility with the MUOS waveform per the MUOS-Specific Terminal Services (MTS) Specification Rev. F (P/N 33000-1).

Technical Specifications

Power Output:

200 watts (+53 dBm) ( MUOS 100W average & 500 W peak )

Frequency Range :

30-520 MHz

Input Power:

+1- dBm to +45 dBm

RF Gain Control:

1 dB steps Input range +10 to +45 dBm.
Output range +40 dBm (10 watts) to +50 dBm (100 watts)

ARC-210 Interface:

Ethernet/IEEE 802.3

Prime Power:

103-126 VAC, 45-420 Hz, single Phase per MIL-STD-1300

Size and Weight:

19" W x 3.5" H x 20.5" D, 48 lbs.

Acoustic Noise:

< 62 dB @3 feet

Shock:

MIL-STD-901D operating: +/- 15 g, 11mSec; non-operating: +/- 30 g

Vibration:

MIL-STD-167-1 Type 1

Temperature:

Operating: 0° C to + 50° C; non-operating: -40° C to +70° C

Altitude:

Operating: 10,000 feet; non-operating: 15,000 feet

Humidity:

95%, non-condensing

EMI/EMC:

MIL-STD-461C

MTBF:

> 16000 hours
